• As shown in the graphic, dialysis equilibrium in the Xpress Dialysis Box, operated with the magnetic stirrer, is reached after only 180 minutes.
• The graph shows an example of the dialysis of 1mM para-nitrophenol in the scienova Xpress Micro Dialyzer MD100 for 24 samples.

• A large buffer reservoir – quickly filled with buffer.
• One box – loaded with the Xpress Dialyzers in one easy step.
• Sample dialysis – gentle on samples, whether manual or automated.
• Buffer exchange – a breeze.
• Optimal volume ratio of the Xpress Dialysis Box: The concentration of low molecular weight substances can be reduced by 98.8% for 96 samples after only one dialysis step.
• This process is 4 times more effective than desalination in a 96 deep well plate
• By connecting a pump to the Xpress Dialysis Box or using a magnetic stirrer, the dialysis process can be accelerated even further
• The Xpress Dial ysis Box is optimized for use in automatic liquid handling machines. Yes, even an automated buffer change with a pump is possible.

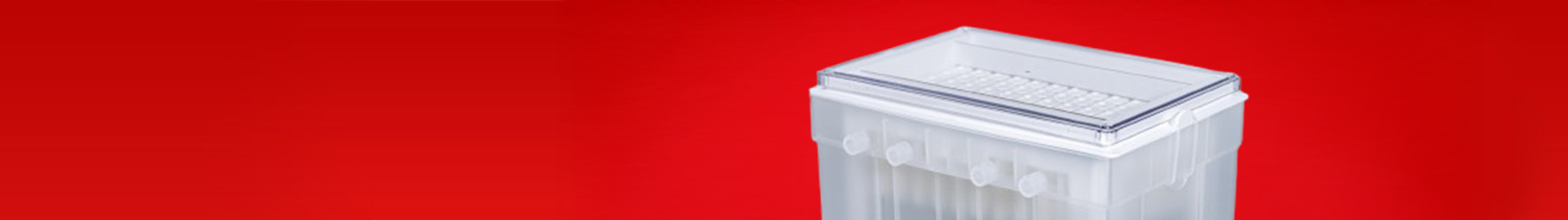

Xpress Dialysis Box XDB

• Suitable for Xpress Dialyzer (MD100, MD300, ED300, MD1000)
• Dialysis Box and dialysis cartridges fit SBS formate (12×8 samples)
• Removable inserts with 48 and 96 grid, suitable for scienova dialysis cartridges
• Shared large buffer reservoir for short dialysis times and higher dialysis efficiency
• Suitable for multichannel pipettes
• Developed and tested for automated liquid handling devices
• Dialysis cartridges, inserts and dialysis box can be fixed to improve pipetting reliability
• Mixing of the buffer by a magnetic stirrer
• Prepared for connection of a peristaltic pump (luer lock connections)
• Mixing the dialysis buffer by circulation with a peristaltic pump
• Buffer exchange via peristaltic pump
• 750 ml
• Material: PP (box, grids)
• Autoclavable (box, grids, scienova Dialyzer)
• Dimensions: 127 × 85 × 100 mm (w ×d × h), weight: 100 g
